5G Network Solution

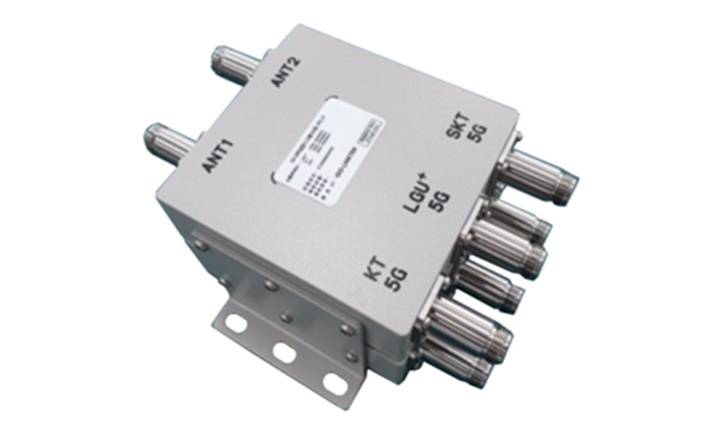

Single Band Combiner 3.5GHz LFT4N-I1


  •
  • Pass Band (MHz) 3350~3500
    3500~3600
    3600~3900
    Impedance 50Ω
    Insertion Loss ≤ 4.2dB
    Isolation ≥ 20dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)     		≤ -155dBc
    Power ≤ 100W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )     		128.0 x 164.0 x 88.0 mm
    IP Grade IP67
    Interface N Female
