5G Network Solution

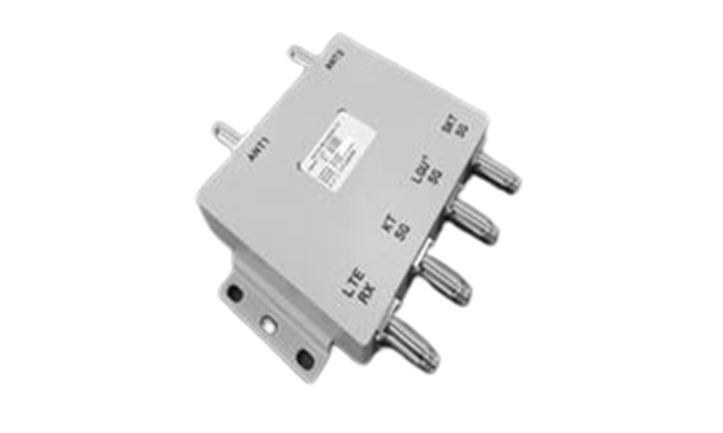

Multi Band Combiner 0.8~3.5GHz LFM4N-I1



  • Pass Band (MHz) 819~915
    1715~1980
    2500~2550
    3350~3500
    3500~3600
    3600~3900
    Impedance 50Ω
    Insertion Loss ≤ 4.5dB
    Isolation ≥ 20dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -150dBc
    Power ≤ 100W
    Temperature -30 ~ +60℃
    Dimension
    ( W x D x H )
    141.0 x 166.0 x 35.0 mm
    IP Grade IP67
    Interface N Female
