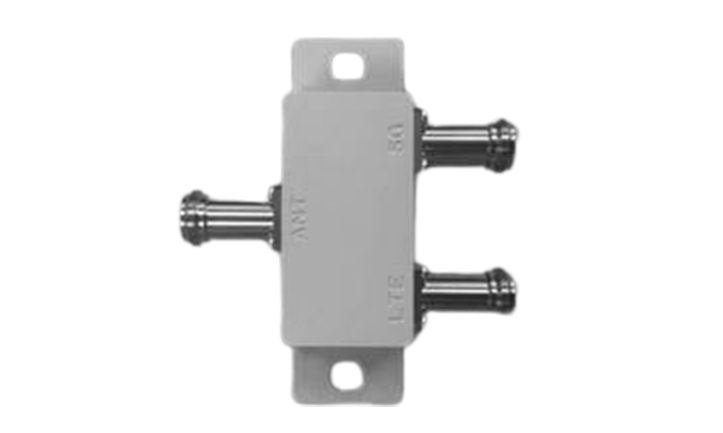

Multi Band Combiner 0.8~3.5GHz LFD1N-K0



  • Pass Band (MHz) 824~884
    1715~1830
    1940~2150
    2500~2670
    3600~3900
    Impedance 50Ω
    Insertion Loss ≤ 1.0dB
    Isolation ≥ 20dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -140dBc
    Power ≤ 5W
    Temperature -30 ~ +60℃
    Dimension
    ( W x D x H )
    44.0 x 64.0 x 35.0 mm
    IP Grade IP67
    Interface N Female
