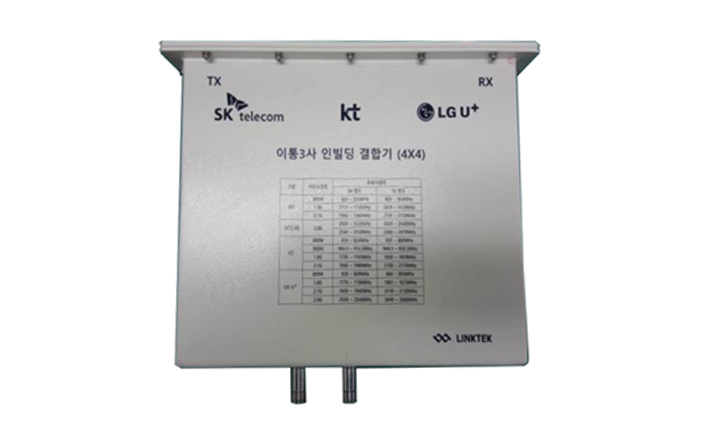

Multi Band Combiner 0.8~2.6GHz LUF2N-00



  • Pass Band (MHz) 814~894
    904.3~959.3
    1715~1870
    1920~2170
    2500~2670
    Impedance 50Ω
    Insertion Loss ≤ 5.8dB
    Isolation ≥ 20dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -150dBc
    Power ≤ 80W
    Temperature -30 ~ +60℃
    Dimension
    ( W x D x H )
    288.0 x 189.0 x 245.0 mm
    IP Grade IP67
    Interface N Female
