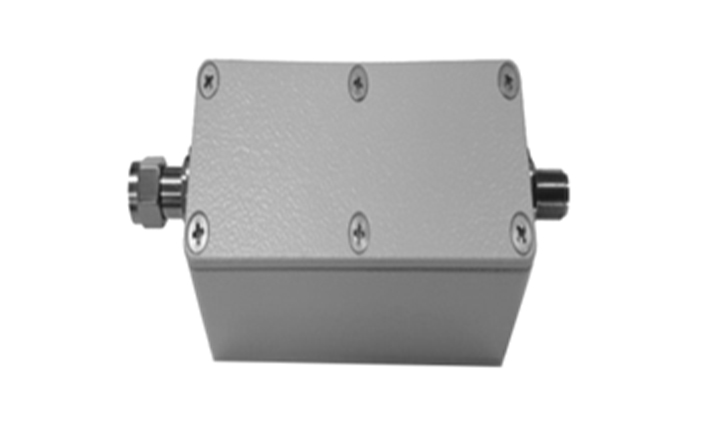

Band Rejection Filter 0.8~2.1GHz LFR1S-E0



  • Pass Band (MHz) 824~884
    1940~1960
    2130
    2135~2150
    Impedance 50Ω
    Insertion Loss ≤ 0.3dB @ 824~884, 1940~1960
    ≤ 17dB @ 2130
    ≤ 2.5dB @ 2135~2140
    ≤ 1.0dB @ 2140~2150
    Rejection ≥ 43dB @ 2120~2126
    ≥ 18dB @ 2129
    Return Loss ≥ 10dB
    Power ≤ 2W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )
    28.0 x 28.0 x 88.0 mm
    IP Grade IP67
    Interface IN : SMA Male
    OUT : SMA Female
