5G Network Solution

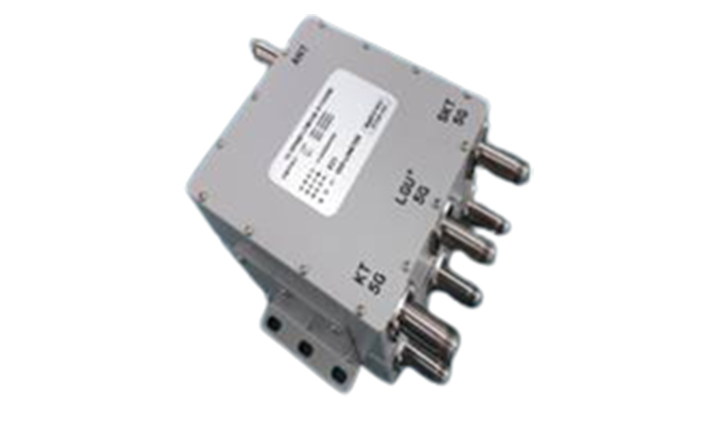

Single Band Combiner 3.5GHz LFT4N-K4



  • Pass Band (MHz) 3350.0~3499.15
    3500.85~3599.15
    3600.85~3900.0
    Impedance 50Ω
    Insertion Loss ≤ 4.3dB
    ≤ 0.7dB Avg.
    Guard Band Width (MHz) 1.7
    Isolation ≥ 20dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -150dBc
    Power ≤ 100W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )
    Single Unit (146.0 x 138.0 x 53.0 mm)
    Double Unit (146.0 x 138.0 x 113.0 mm)
    IP Grade IP67
    Interface N Female
