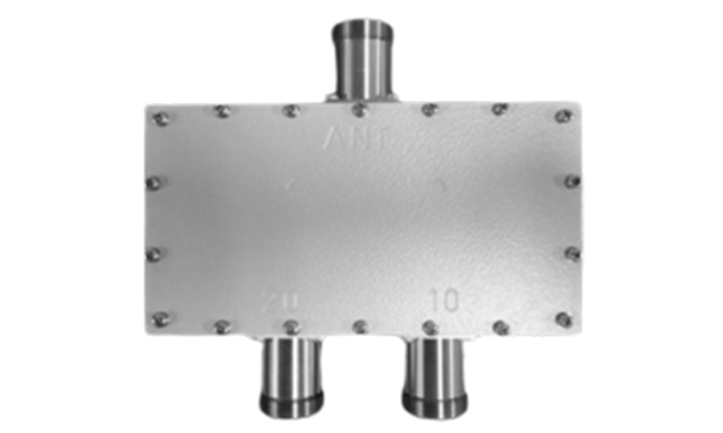

Single Band Combiner 2.6GHz LFD1D-H0



  • Pass Band (MHz) 2500~2520
    2540~2550
    2620~2640
    2660~2670
    Impedance 50Ω
    Insertion Loss ≤ 0.6dB
    Isolation ≥ 30dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -155dBc
    Power ≤ 100W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )
    160.0 x 92.0 x 57.0 mm
    IP Grade IP67
    Interface DIN Female
