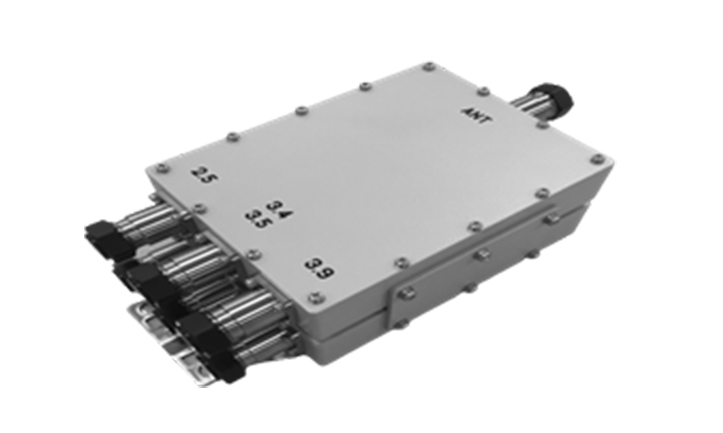

Dual Band Combiner 2.5~4.0GHz LFA5N-H0



  • Pass Band (MHz) 2545~2575
    3400~3600
    3900~4000
    Impedance 50Ω
    Insertion Loss ≤ 0.5dB
    Isolation ≥ 30dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)     		≤ -145dBc
    Power ≤ 40W
    AISG / DC Bypass Bypass
    Temperature -30 ~ +60℃
    Dimension
    ( W x D x H )     		Double Unit 120.0 x 160.0 x 73.0 mm
    IP Grade IP67
    Interface 4.3-10 Female
