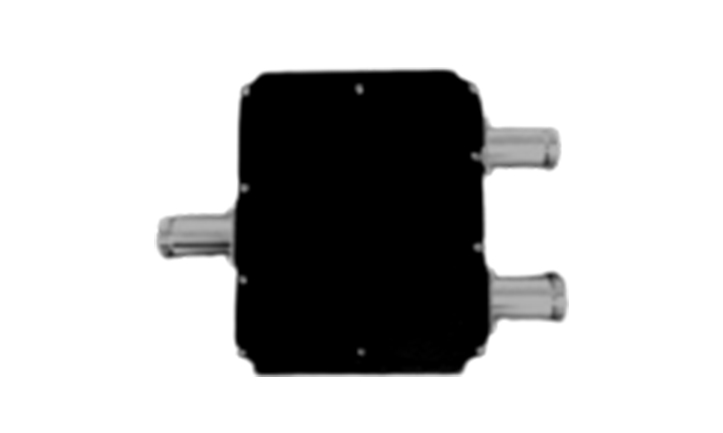

Dual Band Combiner 1.8~2.1GHz LFD1D-D1



  • Pass Band (MHz) 1710~1870
    1920~2170
    Impedance 50Ω
    Insertion Loss ≤ 0.3dB
    Isolation ≥ 50dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)     		≤ -150dBc
    Power ≤ 200W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )     		139.0 x 165.0 x 35.0 mm
    IP Grade IP67
    Interface DIN Female
