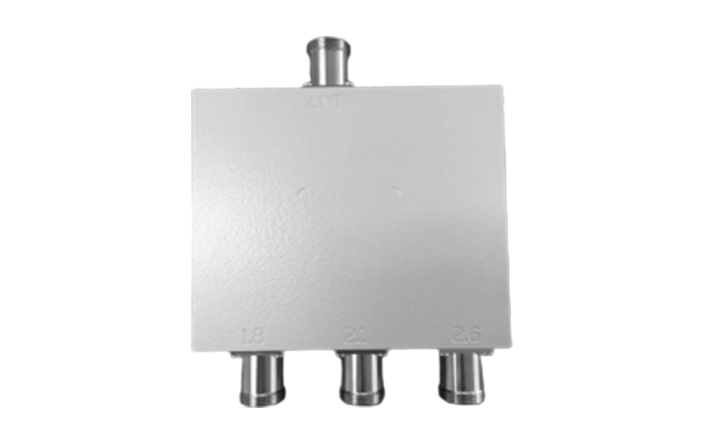

Triple Band Combiner 1.8~2.6GHz LFT1D-D1



  • Pass Band (MHz) 1710~1830
    1930~2330
    2500~2670
    Impedance 50Ω
    Insertion Loss ≤ 0.3dB
    Isolation ≥ 25dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -155dBc
    Power ≤ 100W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )
    175.5 x 199.5 x 44.0 mm
    IP Grade IP67
    Interface DIN Female
