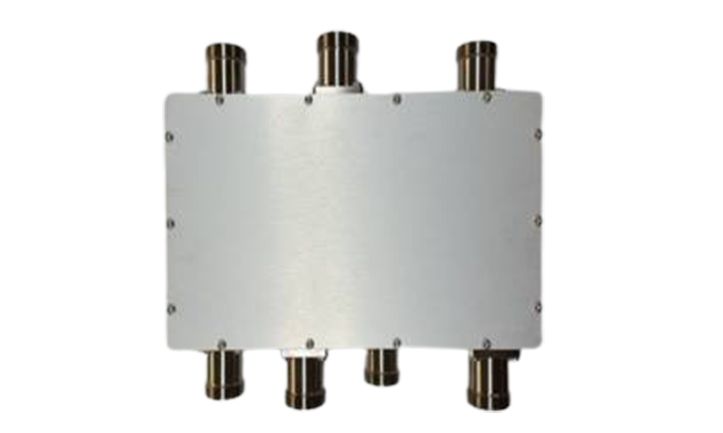

Quad Band Combiner 0.8~2.6GHz LFM1D-B5



  • Pass Band (MHz) 824~894
    1715~1830
    1940~2150
    2500~2670
    Impedance 50Ω
    Insertion Loss ≤ 0.8dB
    Isolation ≥ 30dB
    Return Loss ≥ 18dB
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -155dBc
    Power ≤ 200W
    Temperature -40 ~ +70℃
    Dimension
    ( W x D x H )
    234.0 x 135.0 x 84.0 mm
    IP Grade IP67
    Interface DIN Female
