5G Network Solution

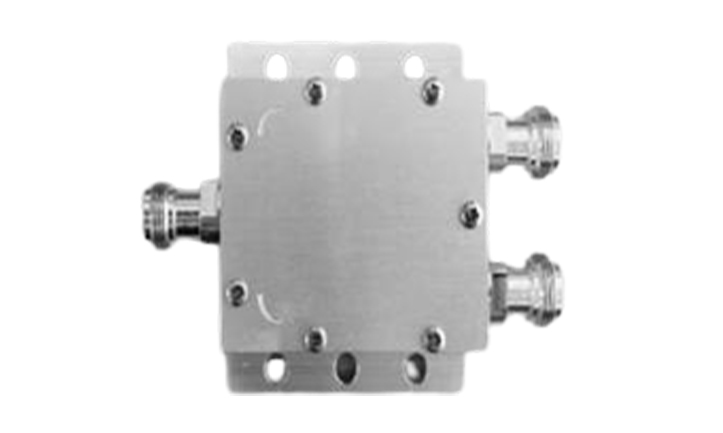

Divider 2way
(50:50) (70:30)



  • Pass Bend (MHz) 600~5000
    Impedance 50Ω
    VSWR ≤ 1.3 : 1
    Insertion Loss ≤ 3.8dB (50%)
    -
    ≤ 2.3dB (70%)
    ≤ 6.3dB (30%)
    Isolation ≥ 18dB
    PIMD
    (3rd, +40dBm x 2Tone)
    ≤ -150dBc
    Power ≤ 150W(forward)
    ≤ 1W(reverse)
    Temperature -30 ~ +60℃
    Interface N Female
