5G Network Solution

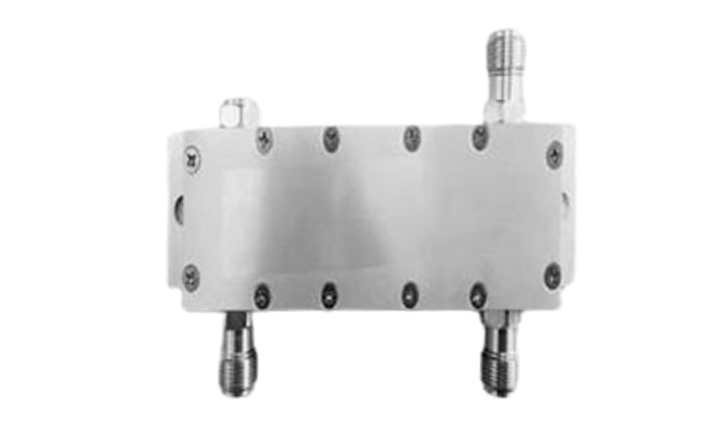

Divider 2way
(80:20) (90:10)



  • Pass Bend (MHz) 600~5000
    Impedance 50Ω
    VSWR ≤ 1.3 : 1
    Insertion Loss ≤ 1.8dB (80%)
    ≤ 7.8dB (20%)
    -
    ≤ 1.2dB (90%)
    ≤ 11.2dB (10%)
    Isolation ≥ 18dB
    PIMD
    (3rd, +40dBm x 2Tone)     		≤ -150dBc
    Power ≤ 150W(forward)
    ≤ 1W(reverse)
    Temperature -30 ~ +60℃
    Interface N Female
