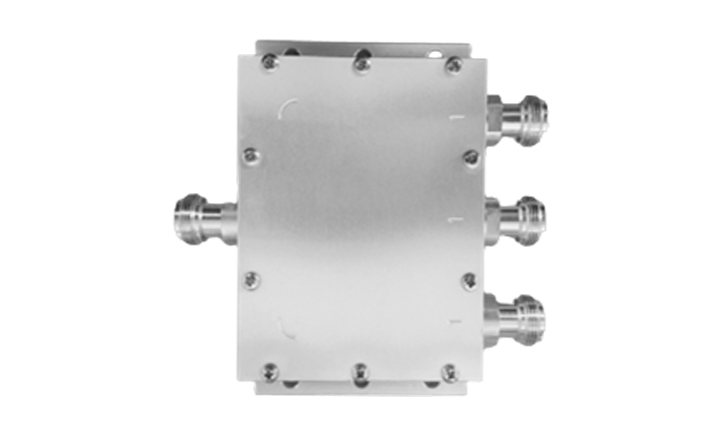

Divider 3way
(33:33:33) (50:25:25) (80:10:10)



  • Pass Bend (MHz) 600~5000
    Impedance 50Ω
    VSWR ≤ 1.3 : 1
    Insertion Loss ≤ 6.2dB (33%)
    -
    ≤ 3.9dB (50%)
    ≤ 7.2dB (25%)
    -
    ≤ 3.2dB (80%)
    ≤ 8.2dB (10%)
    Isolation ≥ 18dB
    PIMD
    (3rd, +40dBm x 2Tone)     		≤ -150dBc
    Power ≤ 150W(forward)
    ≤ 1W(reverse)
    Temperature -30 ~ +60℃
    Interface N Female
