5G Network Solution

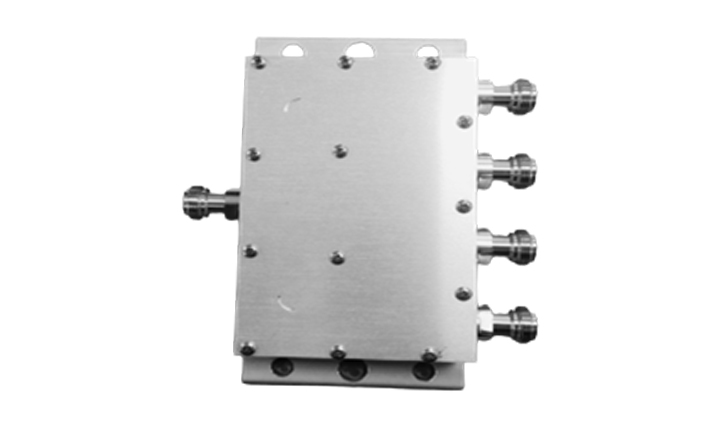

Divider 4way
(25:25:25:25)



  • Pass Bend (MHz) 600~5000
    Impedance 50Ω
    VSWR ≤ 1.3 : 1
    Insertion Loss ≤ 7.4dB (25%)
    Isolation ≥ 18dB
    PIMD
    (3rd, +40dBm x 2Tone)     		≤ -150dBc
    Power ≤ 150W(forward)
    ≤ 1W(reverse)
    Temperature -30 ~ +60℃
    Interface N Female
