5G Network Solution

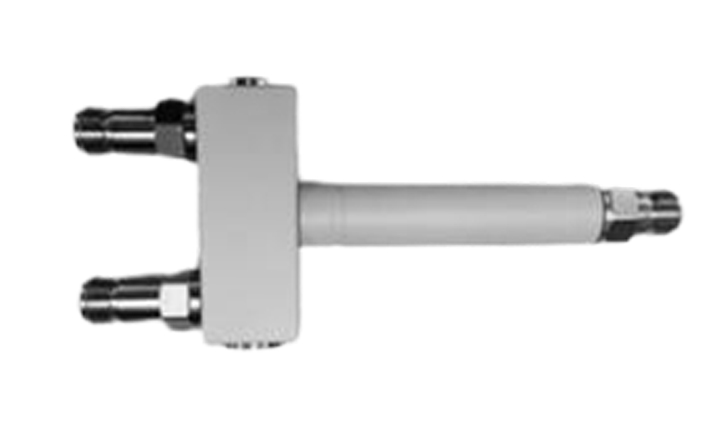

Divider 2way U Type
(50:50) (70:30)



  • Pass Bend (MHz) 600~5000
    Impedance 50Ω
    VSWR ≤ 1.3 : 1
    Insertion Loss ≤ 3.5dB (50%)
    -
    ≤ 2.3dB (70%)
    ≤ 5.9dB (30%)
    PIMD (3rd, +43dBm x 2Tone) ≤ -150dBc
    Power ≤ 300W
    Temperature -40 ~ +70℃
    Interface N, 7/16 DIN, 4.3-10 (Female)
