5G Network Solution

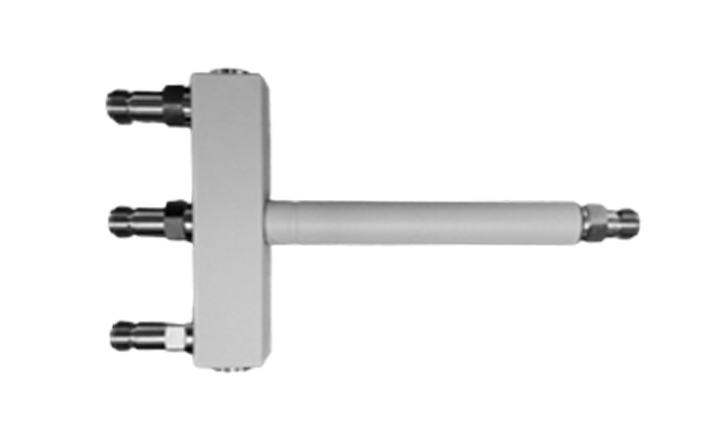

Divider 3way U Type
(33:33:33) (50:25:25)



  • Pass Bend (MHz) 600~5000
    Impedance 50Ω
    VSWR ≤ 1.3 : 1
    Insertion Loss ≤ 5.4dB (50%)
    -
    ≤ 3.6dB (50%)
    ≤ 6.6dB (25%)
    PIMD
    (3rd, +43dBm x 2Tone)
    ≤ -150dBc
    Power ≤ 300W
    Temperature -40 ~ +70℃
    Interface N, 7/16 DIN, 4.3-10 (Female)
